Valve Stem Seal 5/16" x .531"

Steel Retainer Set 11/32"

7° Moly Retainer 3/8 + .045 1.375, 1.060, 0.675 Ford 302-351C STD

Steel Retainer Set 11/32"

Chevy Oil Restrictor Kit
Suit SB & BB Chevy pre 1986
Oil restrictor kit suits pre 1986 Small Block and Big Block engine blocks and utilises a .0625" orifice diameter. Screw into existing lifter gallery cleaning plug holes at the rear of the engine block.

Oil Restrictor Kit
Suit Ford 302-351C. Do Not Use With Hydraulic Cam & Lifters
Aeroflow has become synonymous with premium quality performance products. Aeroflow's objective has been to incorporate state-of-the-art manufacturing, aerospace quality materials and rigid quality controls to produce quality performance products at extraordinary value. Aeroflow has taken its forward thinking knowledge to the street, manufacturing a wide range of race quality products to improve street performance and dependability.

10 ° Lightweight Tool Steel Retainers 1.437" - 1.500" Valve Spring Diameter
CNC - machined for consistent quality
Developed using latest FEA and CAD software
Spintro tested to extreme rpm to prove strength is equivalent to titanium and stronger than chromemoly steel

Spring ID Locator .060" Locator Thickness Locator ID .570", OD 1.625", Spring OD N/A, ID .765"
COMP Cams Spring ID Locators will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup. A new I.D. locator with the locating shoulder on the inside is now available.

Guide Plate Set (Raised) 3/8" Pushrod, 7/16" Stud Suit Big Block Chevy
Designed using stereo lithography techniques for accurate fit; hardened and black oxide finished
Feature exact stud placement and rounded contact points
Necessary for high lift/spring pressure environments of today's performance engines

Valve Stem Oil Seals .500" Guide Size, 11/32" Valve Size Metal Body Viton Seal for use with Triple Spring (Total O.D .456")
Comp Cams offers a complete line of valve stem seals, a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The O ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than stock diameter spring is used, and in the case of a double spring, the positive top Teflon seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the O ring and the umbrella seals require no machining , but with the Teflon seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.

Valve Stem Oil Seals .530" Guide Size, 11/32" Valve Size Metal Body Viton Seal for use with Triple Spring (Total O.D .575")
Comp Cams offers a complete line of valve stem seals, a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The O ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than stock diameter spring is used, and in the case of a double spring, the positive top Teflon seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the O ring and the umbrella seals require no machining , but with the Teflon seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.

Hardened Lash Cap Set .210" Head Diam., .080" Thick, 11/32" Valve Stem
Ultimate in strength and reliability
Fit valve stem well and are easily removed
Must have for titanium valves

7° Machined Valve Locks Single Groove 11/32" Valve Stem Size
COMP cams machined 7° race locks are recommended for race and performance street applications with high spring loads. They offer the same valve spring location accuracy as our Super locks without the need to change to 10° retainers.

Chromoly Valve Locks - 11/32" Jumbo 10° Machined Heat-treated billet bar stock Chromoly steel

Chromoly Valve Locks - 11/32" Jumbo 10° +.050" installed height Machined Heat-treated billet bar stock Chromoly steel

Chromoly Valve Locks - 11/32" Jumbo 10° -.050" installed height Machined Heat-treated billet bar stock Chromoly steel

Valve Spring Shim Kit 1.250" O.D .015", .030", .060" Thickness. .814" I.D
Used to equalise installed height of valve spring
Made from the highest quality shim stock
Available in three different thicknesses to help achieve proper valve spring height
Available for many different spring diameters

Lifter Valley Vent, 1/4" NPT with Hex Head Suit Small Block Chevy
Positive ventilation to upper engine
Prevents drain back to crankshaft
Helps stop excessive windage and horsepower loss
All aluminium - 8 per kit

Valve Stem Oil Seals .500" Guide Size, Stock Valve Size Steel Jacketed Viton Seal for LS1
Comp Cams offers a complete line of valve stem seals, a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The O ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than stock diameter spring is used, and in the case of a double spring, the positive top Teflon seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the O ring and the umbrella seals require no machining , but with the Teflon seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.

8mm 7DEGREE BEAD LOCKS - STD STANDARD, SUITS LS1 & LS2

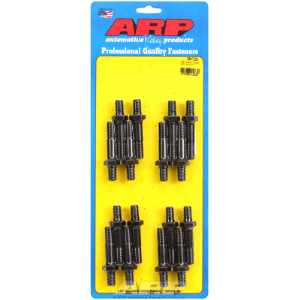

Rocker Arm Stud Kit, Pro Series
7/16" Suit Chev, Ford & Holden, Has Shank Under Hex To Locate Guide Plate


B= 2.100"
C= .750"
D= .800"
E= 7/16-20
F= 7/16-14

12706-12 - FORD XFLOW RETAINERS +0.060

12700-16 - FORD C MOLY RETAINERS (16)

ROCKER BRIDGE SHIM KIT,HOLDEN ALSO SUITS OLDSMOBI LE/PONTIAC
Rocker Arm Bridge Shim Kit

crane's Rocker Arm Bridge Shim Kit Will Correct For Excessive Hydraulic Lifter Pre-load On Late Model Engines. Two Different Thickness Shims Are Included To Decrease Lifter Pre load By Approximately .030", . 060" Or .090" These Shims Can Be A Quick And Easy Alternative To Resorting To Different Length Pushrods.

rocker Arm Pedestal Shim Kit (32).
