ACCUFAB 4150 THROTTLE BODY BLACK
Exceptional Quality. The Accufab 4150 throttle body is made from high quality 6061-T6 billet aluminum and then polished to a mirror finish, anodized black or red. Accufab's quality is second to none. Only the best components are used for unparalleled reliability and performance. Manufactured in the USA.
The Accufab 4150 throttle Body flows 1215 CFM and has four 1-3/4" brass throttle plates.
This model uses late model GM electronics (TPS and IAC) which are included. Also, the 4150 comes with progressive linkage.
Accessories Included: 4150 series throttle body includes a throttle body gasket, throttle position sensor (TPS) and idle air control sensor (IAC) with appropriate mounting screws.
We offer an idle air control block off plate.
ACCUFAB 4150 AIR FILTER SPACER
Air Filter Spacer for use on an Accufab 4-barrel 4150 style throttle body. The Four Barrel Spacer is billet aluminum featuring a polished or black anodized finish. It measures 1.5" tall and includes an o-ring.
ACCUFAB RACE 105MM T,BODY W/4.5" V-BAND
Accufab offers a high performance 105mm throttle body for your 1986-1993 Ford 5.0L Mustang. Replace your restrictive stock throttle body with our top of the line unit and get your 5.0L the air it's lacking.
Available Versions: Accufab's 105mm throttle body is available as a Race, MAX or V-Band version.
Features: Full body stainless steel shaft, 3 position linkage arm with threaded ball stud, linkage arm is hard anodized black, with Idle Air Control provision, O-ring Groove seal on the back, and Sealed and Air Leak resistant up to 100 psi.
All 105mm throttle body versions measure 105mm at the blade and each has a 4.5" inlet. There is no vacuum elbow and 4.5" tubing/hose is required.
Better Air Flow for More Power: This 105mm upgrade will improve your Mustangs throttle response and horsepower. It's the perfect starting point for future modifications.
Exceptional Quality. This throttle body is CNC machined from 6061-T6 billet aluminum and the exterior is polished to an eye-catching finish. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws. Furthermore, the 105mm throttle body features a split shaft design which helps prevent the shaft from breaking under intense pressure. Manufactured in the USA.
Application: This Accufab 105mm single blade throttle body is specifically designed for use on the 1986 - 1993 Ford Mustang 5.0L.
Technical Notes: Idle speed should only be set by adjusting the throttle position sensor. DO NOT adjust any screws on the throttle body. These screws are pre-set at Accufab.
Accessories Included: The throttle body O-RING and ball stud, plus an IAC gasket are included. No mounting hardware available.
Accufab has several optional accessories to help adapt an Accufab 5.0L Ford style throttle body to be used with GM electronics instead of Ford electronics. For example, we offer a TPS adapter to use your GM TPS (Throttle Position Sensor) or an IAC (Idle Air Control) adapter to use your GM IAC. If you need to relocate the IAC or block it off all together, we have developed parts to help accomplish these goals.
ACCUFAB 90MM RACE THROTTLE BODY W/V-BAND
Accufab offers a high performance 90mm V-Band throttle body for your 1986-1993 Ford 5.0L Mustang. Replace your restrictive stock throttle body with our top of the line unit and get your 5.0L the air it's lacking.
Accufab's V-Band throttle body version is designed to be used with a v-band instead of a hose clamp, v-band sold separately. This version features a full body stainless steel shaft, 3 position linkage arm, hard anodized black, with a threaded ball stud, o-ring groove on the back, plus, it's sealed and air leak resistant up to 100 psi
IMPORTANT: There is no IAC provision on part number F90VB or F90VK, however, part number IACR may be used to relocate your IAC, if needed.
Better Air Flow for More Power: This 90mm upgrade will improve your Mustangs throttle response and horsepower. It's the perfect starting point for future modifications. In addition, spacers are offered as an option in combination with our throttle body.
Exceptional Quality: Accufab's quality is second to none! This throttle body is CNC machined from 6061-T6 billet aluminum and the exterior is polished to an eye-catching finish. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws. Furthermore, the 90mm throttle body features a split shaft design which helps prevent the shaft from breaking under intense pressure. Manufactured in the USA.
Application: This Accufab 90mm throttle body is designed for use on a Ford 5.0L Mustang 1986-1993.
Technical Notes: Idle speed should only be set by adjusting the throttle position sensor. DO NOT adjust any screws on the throttle body. These screws are pre-set at Accufab.
Accessories Included: The throttle body o-ring and ball stud. No mounting hardware available.
An optional accessory is our TPSGM which easily bolts on to the throttle body and allows the use of a late model GM style TPS instead of a Ford.

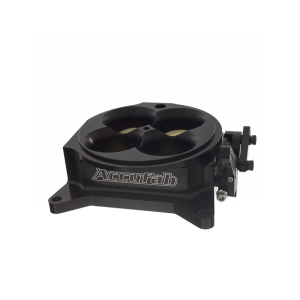

ACCUFAB 4500 FOUR BARREL THROTTLE BODY BLACK
The Accufab 4500 throttle body is made from high quality 6061-T6 billet aluminum and then polished to a mirror finish or anodized black or red. Accufab's quality is second to none. Only the best components are used for unparalleled reliability and performance. Manufactured in the USA.
Like the 4150 throttle body, the 4500 also works fine as a street/strip unit, and is particularly suited to the larger displacement engines.
If you would like to switch from a carburetor intake to electronic fuel injection (EFI), Accufab has developed a high flow throttle body to meet your needs.
Better Air Flow for More Power: The Accufab 4500 flows 2128 CFM and has four 2-1/4" brass throttle plates.
This style uses late model GM electronics (TPS and IAC) which are included. Also, the 4500 series utilizes progressive linkage.
We offer an idle air control block off plate. It's available polished or anodized black, or red.
Accessories Included: 4500 Series throttle body includes a throttle body gasket, throttle position sensor (TPS) and idle air control sensor (IAC) with appropriate mounting screws for the sensors only.

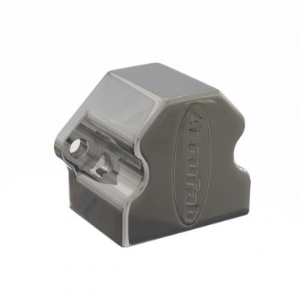

ACCUFAB IDLE AIR CONTROL ADAPTER - IAC - Early & Late GM
Accufab has developed a Idle Aif Control - IAC adapter that makes it possible to use a GM Early model year (THREADED) or Late model year (NON-THREADED OR SMOOTH) Idle Air Control Motor on an Accufab, Ford style throttle body. Polished, billet aluminum.
IMPORTANT: BEFORE ORDERING, PLEASE DOUBLE CHECK YOUR GM IDLE AIR CONTROL MOTOR TO SEE IF IT'S THREADED OR IF IT'S NON-THREADED, SMOOTH.
GM Early Style IAC Adapter- Our part number IACGM-1 allows a GM early model year "threaded" style GM IAC motor to be mounted on an Accufab, Ford 5.0L style (65mm through 105mm) throttle body. Includes adapter & IAC gasket. (Your GM motor will actually have threads on it and screw into this adapter, have a square connector with 4 connector cavities and no other fasteners are needed)
GM Late Style IAC Adapter - Our part number IACGM-2 allows a GM late model year "smooth, non-threaded push-in" style flat 4-pin GM IAC motor to be mounted on an Accufab, Ford 5.0L style (65mm through 105mm) throttle body. Includes adapter & IAC gasket and two fasteners. (Your GM IAC motor doesn't screw in, it simply pushes into the adapter, and has flat 4-pin oval connector. After it's pushed in to the adapter, it's held in place with two small fasteners.)
Idle Air Control Motor is not included.
Note: Chrysler Flat 4-pin IAC Motor is different than the GM IAC motor, although it looks identical, the bolt pattern to fasten the IAC motor to the adapter differs and does not bolt on to our adapter. Accufab does not recommend modifying the adapter to work with a Chrysler IAC Motor. Forcing it to fit, will strip the threads on the adapter.

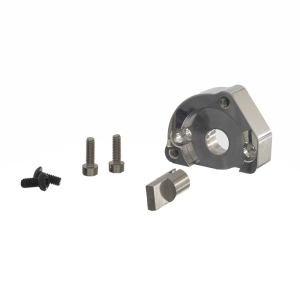

ACCUFAB THROTTLE POSITION SENSOR ADAPTER FOR GM
TPS adapter that allows a Late style GM throttle position sensor to be used on Accufab's Ford style Mustang 1986-1993 5.0L throttle body. This adapter may not fit on other brands, please check fitment prior to ordering.
The adapter includes the main adapter plate, TPS extension and mounting hardware.
Throttle body and TPS sold separately.
If you are using this part on an Accufab throttle body, in order for the TPS to make contact with the shaft, the late model GM TPS must have inner tab clocking of: Top position 1 o'clock Bottom position: 7 o'clock.
