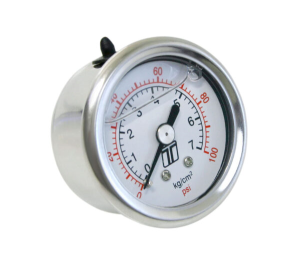

Fuel Pressure Gauge. Suits Turbosmart Fuel Pressure Regulator Series including FPR800, 1200, 2000 and 3000. Fits 1/8 NPT port.

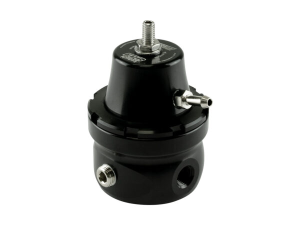

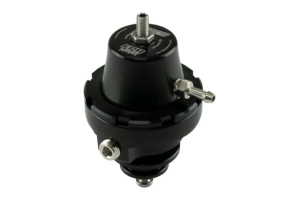

An All Black Fuel Regulator Upgrade Series for OE and Mild Upgrades to around 800HP. The FPR Kompact Series includes Universal (1/8NPT) Fuel Fittings as well as Bolt-ON direct replacement for Bosch in-rail style regulators as fitted to the VAG (Volkswagen Audi Group) of vehicles and the Ford ‘Barra’ Engine as found in the Australian Delivered Ford XR6 turbo. Providing class leading fuel control and response with a small footprint. FPR Kompact range for Bolt on & OE (EFI) Upgrade for 35psi to 80psi FPR Kompact Low Pressure (LP) upgrade for 3psi to 20psi Features Stainless Steel Valve Seat Suitable for all fuel types 1:1 Class Leading Ratio & Response Adjustable Pressure 1/8 NPT Pressure Sensor Port Unique Locking Collar Design Milspec Diaphragm

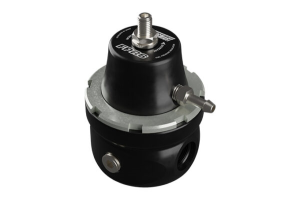

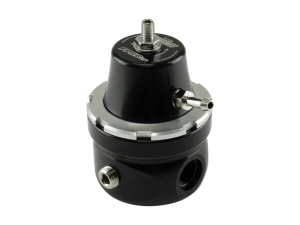

The Turbosmart FPR6 Series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm the FPR6 Series is suitable for all Fuel types including Race Fuel and aggressive leaded fuels. Our FPR6 Range includes 6AN inlet and outlet and return fittings and is Available in Standard (35psi to 80psi) as well as LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems. Features Stainless Steel Valve Seat Suitable for all fuel types 1:1 Class Leading Ratio & Response Adjustable Pressure 1/8 NPT Pressure Sensor Port Unique Locking Collar Design Milspec Diaphragm

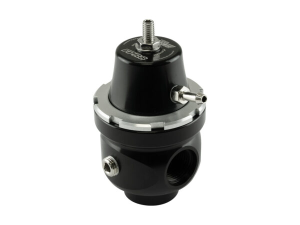

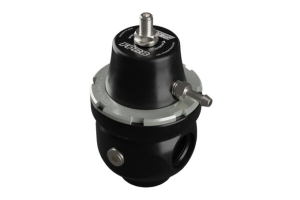

The Turbosmart FPR8 Series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -8 / 8AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm the FPR8 Series is suitable for all Fuel types including Race Fuel and aggressive leaded fuels. Our FPR8 Range includes 8AN inlet and outlet and return fittings and is available in Standard (35psi to 80psi) as well as LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 2000HP systems. Features Stainless Steel Valve Seat Suitable for all fuel types 1:1 Class Leading Ratio & Response Adjustable Pressure 1/8 NPT Pressure Sensor Port Unique Locking Collar Design Milspec Diaphragm

Boost Tee Manual Boost Controller (Black) Suitable for all Turbcharged Applications
Smaller And Lighter Than Other Manual Boost Controllers On the Market. Set Your Boost And Forget It. Boost Adjustable Fr om Under The Hood With An Accurate, Proven Detent System. Easy To Install And Adjust. Suits Any Turbocharged Vehicle.
supplied With Billet Mounting Bracket.

This is a Gen4 External Wastegate and has been superseded by the Award Winning Turbosmart GenV Range of Modular External Wastegates: Click here to see the Turbosmart GenV HyperGate45 Range of External Wastegates The Turbosmart Legacy Program ensures all previous generation products continue to be fully supported with Spares and Accessories. Actual product availability may continue well after official production ends so please call your dealer or distributor for more info. All Spares and Accessories can be found Here on our Website. The Turbosmart Gen4 Range of External Wastegates are designed with minimum size & flow in mind. Smaller and lighter than the previous model, the Gen4 HyperGate45 features Turbosmart’s unique locking collar design for reduced size and quicker spring changes. (Options from 3psi to 26psi available)

Constant Torque Hose Clamps
1.970 - 2.875", (50 - 73mm)

Constant Torque Hose Clamps
2.500 - 3.375", (64 - 86mm)

ProPort by Turbosmart is an All New 54mm (2.13in) Blow Off Valve with a tiny footprint and massive flow. The ProPort flows 420 cfm which is enough for 3500 HP and is in a league of its own standing 30mm (1.2in) lower than PowerPort while flowing over 25% more than the Market leading 50mm Raceport. Features include our unique locking collar design, new unique vent profile, sensor cap option and spring options for all turbocharged and supercharged applications The ProPort was a result of over 25 years of Blow Off Valve manufacturing experience and 12 months of internal development. The design is CFD driven & real-world validated for maximum possible flow based on the demands of the Tuning & Motorsport Market. The Milspec Diaphragm operated valve is highly responsive while using our Boost-Balance system which means the more boost you feed it, the better it seals! Available with an onboard position sensor as an option, we utilize a non-contact hall effect sensor for position of the valve which means no through-holes in the cap ensuring no chance of leaks. The data this can provide for professional & amature teams alike is invaluable when every pass & every minute on track counts! The Quick Release V-Band system is of the quality you have come to expect from Turbosmart as our GenV cap profile is easily distinguishable and includes 2 x 1/8NPT reference ports on a cap that can be rotated for simplifying reference hose runs in complex engine bays.

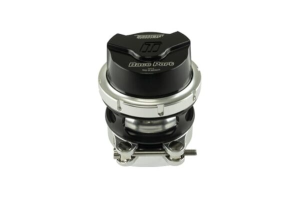

The Turbosmart RacePort is famous for being an amazingly small and light BOV for turbocharged competition level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM – making it the highest flowing BOV of its type on the market.

DESCRIPTION:

Turbosmart FPR 800 1/8 NPT-Black TS-0401-1102

WOULD SUIT:-

Ideal for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems.

Other Information:

Turbosmart's newest High-performance EFI fuel pressure regulator is smaller, lighter and better! Now featuring three 1/8 NPT ports, 35-90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems. Factory tested.

Supplied With: Mounting bracket and retaining clip, vacuum fitting and gauge port blank.
EFI fuel regulator
3 x 1/8" NPT ports
Capable of regulating up to 800hp of fuel flow
1:1 manifold pressure ratio with no load losses
35-90psi base pressure range
Stainless steel internals providing maximum integrity and reliability
Suitable for all fuel types
Operational between -35ºC to +200ºC
MILSPEC diaphragm
Bracket and retaining clip supplied
Pressure port 1/16 NPT with nipple supplied
Manufactured, assembled and validated in-house at Turbosmart HQ

DESCRIPTION:

Turbosmart FPR 1200 -6 AN-Black TS-0401-1104

WOULD SUIT:-

Ideal for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems.

OTHER INFORMATION:

Turbosmart's newest High-performance EFI fuel pressure regulator is smaller, lighter and better! Now featuring three 1/8 NPT ports, 35-90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems. Factory tested.

Supplied With: Mounting bracket and retaining clip, vacuum fitting and gauge port blank.
EFI fuel regulator
3 x 1/8" NPT ports
Capable of regulating up to 800hp of fuel flow
1:1 manifold pressure ratio with no load losses
35-90psi base pressure range
Stainless steel internals providing maximum integrity and reliability
Suitable for all fuel types
Operational between -35ºC to +200ºC
MILSPEC diaphragm
Bracket and retaining clip supplied
Pressure port 1/16 NPT with nipple supplied
Manufactured, assembled and validated in-house at Turbosmart HQ

The GenV PowerGate60 Compressed Gas external wastegate is a cost effective, high performing 60mm external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing, or compressed air WRC applications. The Compressed Gas range feature an inverted diaphragm to maximise diaphragm life from high pressure CO2 or compressed air systems. The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it. A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.

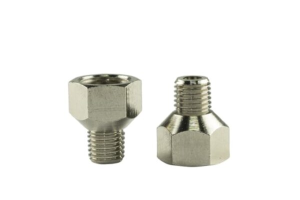

Adaptor - Suit Turbosmart WG38, WG40 and WG45 External Wastegates, as well as Race Port BOV and FPR vacuum port. Allows the use of 1/8NPT fittings with the smaller 1/6NPT reference ports.

Ford XR6 Internal Wastegate Actuator (IWG) provides better turbo response and greater sensitivity when managing boost pressures. Designed as a direct bolt-on replacement for the factory part, the XR6 IWG is easy to install and requires no special tools or fabrication. It can’t get any easier!

FEATURES:
• Silicone diaphragm with Nomex reinforcement to withstand high temperatures.
• High grade, billet aluminum construction.
• Stainless steel rods and connecting clevis for corrosion resistance.
• Locking Collar design cap allows for quick spring changes.
• Ideal for use with any Turbosmart boost controller.

Supplied With:
Fitting Hardware, 6.3mm Clevis end and Nut, Brown/Grey 5psi Inner Spring and Brown/Purple 7psi Middle Spring (installed).

Murray Clamp - Constant Tension Clamps 1.125-1.500" supplied in packs of two.

Murray Clamp - Constant Tension Clamps 1.375-1.875" supplied in packs of two

Murray Clamp - Constant Tension Clamps 1.625-2.375" supplied in packs of two.

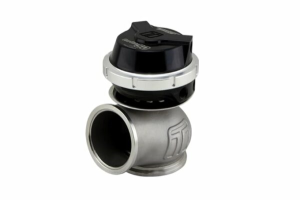

Our new wastegates are a direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8? NPT ports, and are provided with a range of springs. They are also available in Motorsport and compressed gas-only versions for those requiring specific applications. Modular The 5th series wastegate range has been designed for maximum user-adjustability, without compromising performance. We designed our new unit to allow actuators to be interchangeable across the range. So, if you need a large wastegate in a tight space you can run a smaller actuator on the larger body. Additionally, if you decide to upgrade your new wastegate to a Motorsport or compressed gas-only actuator you can with an upgrade kit. Adjustability The unique variable adjustment design allows the wastegate actuator base to be oriented independently from the weld flanges. The cap is also completely independent and indexable in 12 different positions compared to the actuator base and body. This allows the wastegate to be fitted in confined positions without compromising packaging for fittings or aligning the cap. Upgrades and Servicing Due to the modular construction, the new range is also upgradeable and completely serviceable, as all components can be removed or upgraded. Components have been tested for over one million cycles so reliability will be rock-solid. Flow and Thermal Performance Our new range of wastegates out-flow all competitors thanks to our world-leading engineering and simulation abilities. Thermal performance has been improved drastically compared to our nearest rival, and all wastegates feature liquid cooling ports for further thermal performance if required Control For fine-tuning, boost performance, a selection of springs will be supplied with each wastegate. All wastegates feature 1/8? NPT ports for maximum response and flow while maintaining a high level of compatibility for fittings.

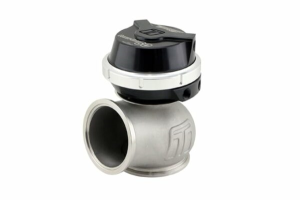

he GenV WG60 PowerGate60 External Wastegate is a Motorsport proven, cost effective external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing Wastegate in the World. The GenV provides extensive user configuration, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it. A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.

Turbosmart’s Patent Pending, eWG60 is a fully electronic actuated wastegate – Built on the successful, class leading GenV PowerGate60 architecture, now with the kind of control never seen before. Starting with a Turbosmart’s GenV wastegate body, you can be confident the mounting orientation will match your existing manifold & outlet hardware. The GenV PowerGate60 already had class leading flow capacity & heat handling characteristics. Now featuring the Turbosmart Patent Pending eWG actuator system, you can be sure of unparalleled control aswell. There are no springs, no hoses and no boost reference signal, nor any of the limitations associated with any of them. Gone are ‘Minimum’ boost levels associated with base spring pressure or the heat related issues with hoses. If your manifold priority is good enough, you can set your boost anywhere from zero up to ‘All of it’ – All from your laptop or tuning interface

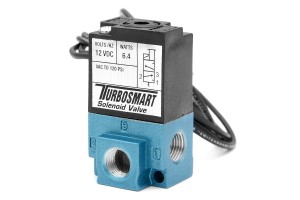

Solenoid (3 Port) – Suit Turbosmart Boost Controllers (eBoost2 and eBoost Street). Replacement for Turbosmart eBoost2 and eBoost Street. Also suitable for a large range of Aftermarket & Motorsport ECU control strategies. Available in 3 Port & 4 Port Configuration Features 1/8 NPT Female Ports Anti-Vibration Mount Flying Lead (2 Wire) loom – Unterminated Nickel Plated Hose End Fittings (Suit 6mm / 1/4?) ID Hose
