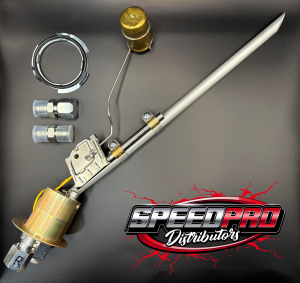

Fuel Pickup – 1/2" Sending Unit, PN 1100

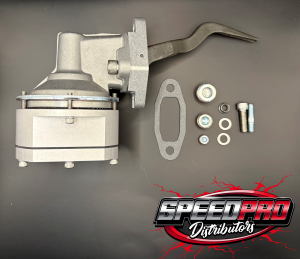

Ford 351 Cleveland 550HP Fuel Pump Specifications:
For Engines Up To 550 horsepower
Can be upgraded later to an 1100HP for $100
Valve Body Can Be Rotated To Any Angle: No Disassembly Required
Maximum Output Pressure: 7.0 PSI (+/- 1) (about 1 psi less when using vapor return option PN 1010)
Side Inlet Port: 1/2 NPT
Bottom Outlet Port: 1/2 NPT
Recommended Fuel: Gasoline or gasoline/ethanol blends
Recommended MINIMUM Feed Line Size: 3/8" (or -6AN) up to 450 hp; 1/2" (or -8AN) up to 550 hp

Ford 351 Cleveland 1100HP Fuel Pump Specifications:

For Engines up to 1100 horsepower
Valve body can be rotated to any angle - no disassembly required
Maximum output pressure: 12psi (+/-1)
Side inlet port: 1/2NPT
Bottom outlet port: 1/2NPT
Recommended fuel: gasoline or gasoline/ethanol blends
Recommended minimum feed line size: 1/2" (or -8AN) up to 750hp; 5/8" (or -10AN) up to 1100hp

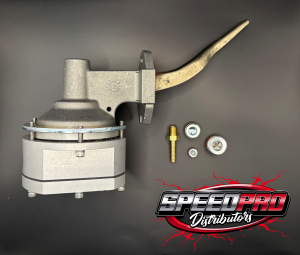

Holden 308 Mechanical 550HP Fuel Pump Specifications:

For Engines up to 550 horsepower
Valve body can be rotated to any angle - no disassembly required
Maximum output pressure: 7.0psi (+/-1)
Side inlet port: 1/2NPT
Bottom outlet port: 1/2NPT
Recommended fuel: gasoline or gasoline/ethanol blends
Recommended minimum feed line size: 3/8" (or -6AN) up to 450hp; 1/2" (or -8AN) up to 550hp
