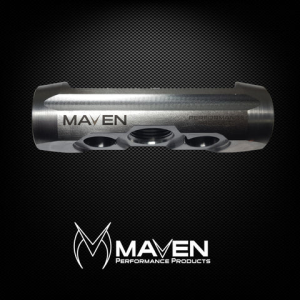

DESIGNED & MACHINED IN THE USA BILLET COLD ROLLED STEEL (CRS) DUAL TUBE DIAMETER POCKETS- 1″ & 1-1/8″ CAN ALSO BUTT WELD 1.25" TUBE CENTER MOUNTING ON BEARING HOUSING -10 ORB/AN DRAIN O-RING SEAL- NO GASKET REQUIRED BEARING HOUSING CAN PIVOT 360 DEG W/O INTERFERENCE WEIGHS JUST 1 LB MEASURES 4.4″L 1.4W 1.25H

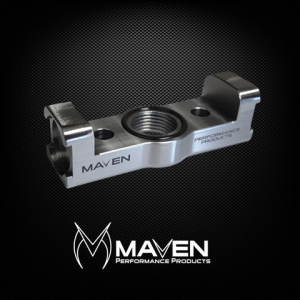

FEATURES: DESIGNED & MACHINED IN THE USA BILLET STEEL – 1018 CRS 2 DIFFERENT TUBE DIAMETER POCKETS- 7/8? & 1? CENTER MOUNTING ON BEARING HOUSING -10 ORB/AN DRAIN (GT35 VARIATION= -8 ORB/AN) O-RING SEAL TO DRAIN SURFACE- NO GASKET REQUIRED (STANDARD GASKET ON GT35 /1.5" VERSION) BEARING HOUSING CAN PIVOT 360 DEGREES WITHOUT INTERFERENCE WEIGHS JUST 9.5 oz MEASURES 3.75?L 1.35W 1.125H

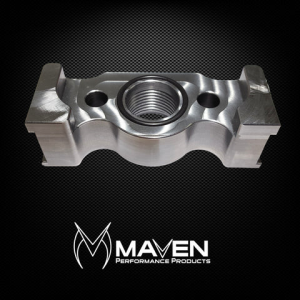

FEATURES: DESIGNED & MACHINED IN THE USA BILLET COLD ROLLED STEEL (CRS) 2 DIFFERENT TUBE DIAMETER POCKETS- 1.125″ & 1.25″ CENTER MOUNTING ON BEARING HOUSING -12 ORB/AN DRAIN O-RING SEAL- NO GASKET REQUIRED BEARING HOUSING CAN PIVOT 360 DEG W/O INTERFERENCE WEIGHS JUST 18 oz MEASURES 4″L 1.75W 1.4H

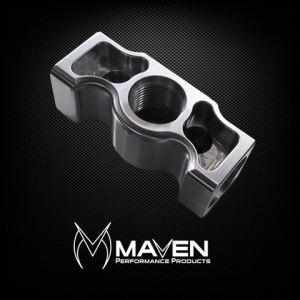

FEATURES: DESIGNED & MACHINED IN THE USA BILLET COLD ROLLED STEEL (CRS) 2 DIFFERENT TUBE DIAMETER POCKETS- 1.125? & 1.25? CENTER MOUNTING ON BEARING HOUSING -12 ORB/AN DRAIN O-RING SEAL- NO GASKET REQUIRED BEARING HOUSING CAN PIVOT 360 DEG W/O INTERFERENCE WEIGHS JUST 18 oz MEASURES 4?L 1.7W 1.4H

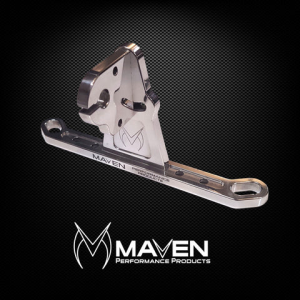

FEATURES: Mounts to all 4150/4500 intake flanges, forward or sideways 3 levels of adjustment to fit your specific combo All parts CNC machined in the USA Total weight = 3.2 oz. Through hole for cable = .350? diameter (MOST LOKAR AND SIMILAR CABLES) ONLY FOR USE ON OFF-ROAD APPLICATIONS! NOT FOR STREET USE! KIT INCLUDES: -One throttle cable bracket (base, stand, retainer) -All required stainless steel fasteners WE HAVE ATTEMPTED TO MAKE THIS BRACKET FIT AS MANY THROTTLE BODY/ELBOW COMBOS AS POSSIBLE, IF YOUR ELBOW AND THROTTLE BODY ARE NOT ON THIS LIST PLEASE LET US KNOW SO WE CAN HELP VERIFY FITMENT- WE ARE CONTINUALLY ADDING TO THIS LIST COMPATIBLE ELBOWS COMPATIBLE THROTTLE BODY WILSON BILLET 4150 WILSON 90, 105mm BERRY MOTORSPORTS BILLET ACCUFAB 90, 125mm EDLEBROCK CAST 3849 NICK WILLIAMS 92MM HOLLEY CAST ELBOW OTHER SIMILAR TB'S 6061.COM FABRICATED ELBOW *MOST FABRICATED ELBOWS *FITS MANY OTHERS, PLEASE CONTACT IF NOT ON THIS LIST *DOES NOT FIT THE WILSON 123MM TB- PLEASE CLICK HERE The Maven Performance Products billet throttle cable bracket is specifically designed for use with forward and side facing throttle bodies mounted on 4150 and 4500 type intake manifolds. The bracket bolts to the intake, and fits 4150/4500 flanges in forward and sideways orientation. We know there are variety of elbow and throttle body combos out there, and this system was designed to be versatile with 3 levels of adjustment to meet your needs.
